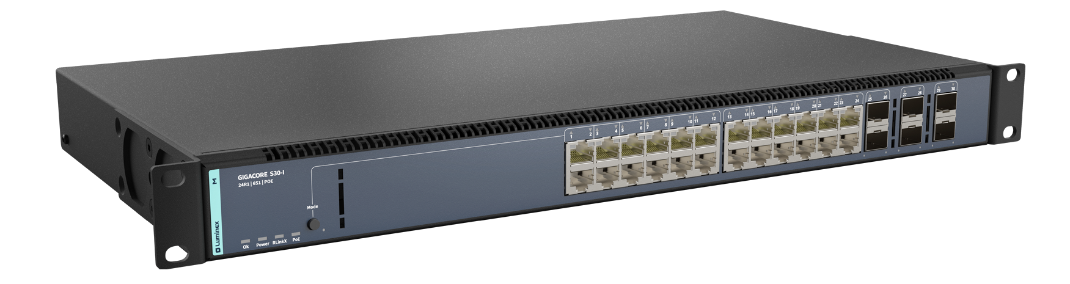

GIGACORE S30-I

1Gb AV Network Switch. Installation. Integration. Touring



Intuitive web UI

The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done  on the fly and  the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.

No compromises


The GigaCore S30-I is an indispensable part of any AV

network where reliability and quick, straightforward setup

are required. As a user, you don’t need to make choices or

tradeoffs, as GigaCore handles most AV protocols for you

out of the box.

PoE+


Entertainment installations constantly push the limits, and

the need to deploy PoE-powered devices is continuously

increasing. The GigaCore S30-I provides an answer to these

scenarios by offering PoE+ on all ports as an option.

  • Most suitable applications: System integrations, Installs
  • PoE: PoE+ Optional (up to 300W)
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 1 GB RAM – 8 MB NOR flash 4 GB EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput 64 Byte: 44,4Mpps
  • Switching capacity: 60Gbps
  • Jumbo frames: MTU up to 120000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • TAA Compliance: Yes
  • Ethernet connectivity: 24x Gigabit (10/100/1000 BASE-T) copper RJ45 on front panel
  • Fiber connectivity: 6x 1 Gbps SFP cages on front panel, independent from other ports
  • Ethernet port speed: NA
  • Serial: No
  • Power connectivity: 1x PowerCON True1 in
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption:
    • S30-I PoE: max 333W
    • S30-I non PoE: max 30W
  • Fuse: NA
  • Backup power input: NA
  • Backup PoE power input: NA
  • PoE: PoE+ Optional (up to 300W)
  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), IEEE 1588 PTP V2, MILAN AVB, IEEE 802.1as (gPTP) and more...
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.1ax, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1Qav MVRP, IEEE 802.1 BA-2011 AVB (Audio Video Bridging) IEEE 802.1ab LLDP, IEEE 1588-2008 PTPv2, IETF RFC2710, IETF RFC3810
