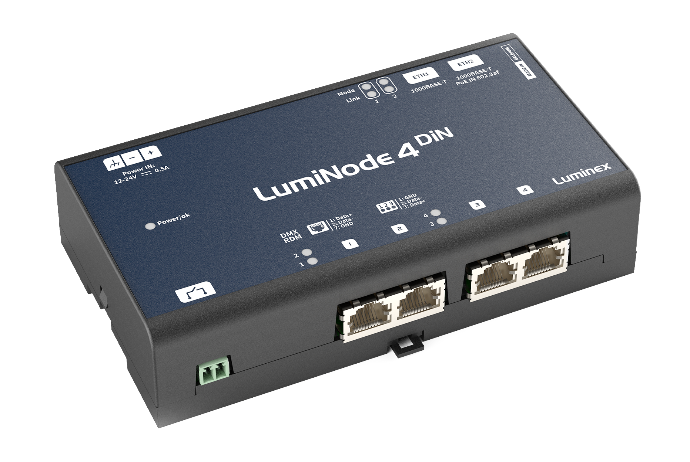

LumiNode 4 DIN DIN rail mountable for fixed install
LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardised mounting bracket is ideal for Architainment applications and install projects. For full flexibility the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks.
The unit can be powered over PoE or DC voltage. The second 1Gb RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered). Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an in- or output.
All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

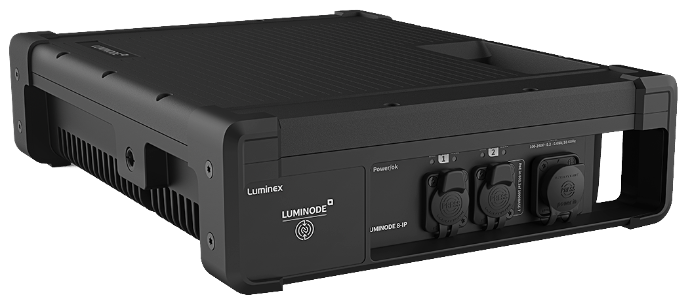

LumiNode 8-IP Made for any outdoor event
LumiNode 8-IP is designed with an IP65 rated, all metal, robust enclosure,withstanding extreme temperature conditions, making it an ideal solution for outdoor AV installs and live performances. Equipped with 2x 1Gb IP65 ethercon ports and 8 DMX/RDM ports with IP65 5-pin connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output.
All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
.

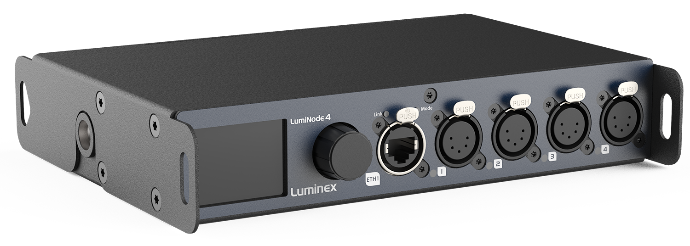

LumiNode 4 Half 19″ or Truss mountable
LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances.
Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package. The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output.
All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
