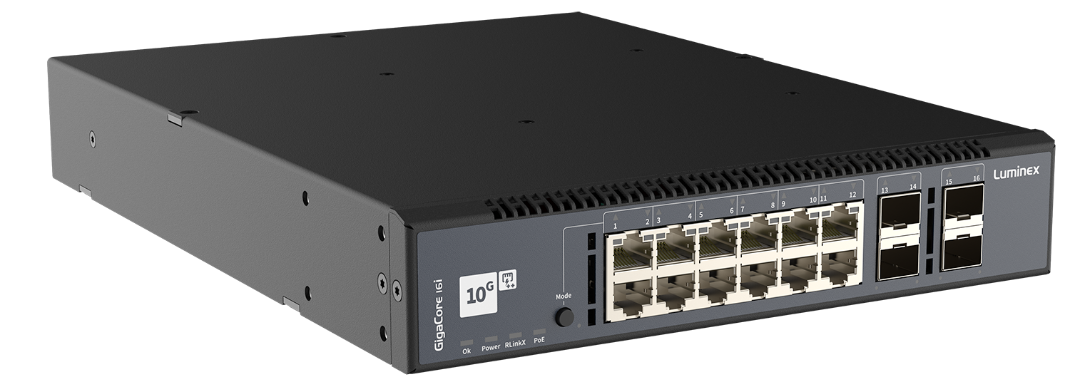

Quick overview

• Easy to configure with WebUI & ARANEO.
• 12 x 1Gbps RJ45 copper ports.
• 4 x independent SFP+ ports, data transfer speeds of up to 10 Gbps.
• Pre-configured for ProAV – no compromises required.
• Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port.
• PoE++ support on all copper ports.
• Dedicated connection for the RPSU 5580, enabling redundant power or increased PoE budget.
• Most suitable applications: Installations
• PoE: PoE++ Optional (up to 450W or up to 850W with RPSU 5580)
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 77,38Mpps
• Switching capacity: 104Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
• TAA Compliance:
